Dipped nylon tire cord fabrics are rubber reinforcement materials known for their high strength and excellent fatigue resistance. Its resilient molecular configuration provides consistent stress dispersion, controlled elongation, and dependable structural integrity across repeated loading environments.
Item | Unit | 840D/1 | 1260D/1 | 1680D/1 | 840D/2 | 1260D/2 | 1680D/2 | 1890D/2 | 1260D/3 | 1680D/3 | 1890D/3 |
930dtex/1 | 1400dtex/1 | 1870dtex/1 | 930dtex/2 | 1400dtex/2 | 1870dtex/2 | 2100dtex/2 | 1400dtex/3 | 1870dtex/3 | 2100dtex/3 | ||
Breaking strength | N | ≥67 | ≥98 | ≥127 | ≥135 | ≥208 | ≥275 | ≥304 | ≥308 | ≥390 | ≥435 |
Elongation at certain load | % | 7.5±1.0 (22.6N) | 7.0±1.0 (33N) | 8.0±1.0 (44.1N) | 9.5±0.8 (44.1N) | 9.5±0.8 (66.6N) | 9.5+0.8 (88.2N) | 9.5+0.8 (100N) | 9.5+0.8 (100N) | 10+0.8 (150N) | 10+0.8 (150N) |
Breaking elongation | % | 20±2 | 20±2 | 20±2 | ≥18 | ≥19 | ≥20 | ≥21 | ≥21 | ≥23 | ≥24 |
H-adhesion | N/cm | ≥49 | ≥64 | ≥78 | ≥107.8 | ≥137.2 | ≥156.8 | ≥166.6 | ≥166.6 | ≥225 | ≥235 |
Diameter | mm | 0.32±0.03 | 0.43±0.03 | 0.50±0.3 | 0.55±0.04 | 0.65±0.04 | 0.75±0.04 | 0.78±0.04 | 0.78±0.04 | 0.92±0.04 | 0.96±0.04 |
Twist | T/10m | 21±1.5 | 19±1.0 | 16±1.0 | 46±1.5 | 37±1.5 | 33+1.5 | 32+1.5 | 32+1.5 | 24±1.5 | 24±1.5 |
Dip pick up | % | 4.2±1.2 | 4.2±1.2 | 4.2±1.2 | 4.5±1.0 | 4.5±1.0 | 4.5+1.0 | 4.5+1.0 | 4.5+1.0 | 4.5+1.0 | 4.5+1.0 |
Moisture content (max) | % | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Heat shrinkage | % | ≤4.0 | ≤4.0 | ≤4.0 | ≤6.5 | ≤6.5 | ≤6.5 | ≤6.5 | ≤6.5 | ≤6.5 | ≤6.5 |
Item | Unit | 105D/1 | 210D/1 | 420D/1 | 630D/1 |
Breaking strength | N | ≥4.9 | ≥14.7 | ≥32 | ≥47 |
Elongation at certain load | % | 8.0±2.0 | 11.5±2.0 | 12.0±3.0 @22N | |
H-adhesion | N/cm | ≥4.9 | ≥9.8 | ≥29 | ≥40 |
Diameter | mm | 0.10±0.03 | 0.13±0.02 | 0.23±0.05 | 0.30±0.05 |
Twist | T/10m | 20±5 | 28±1.5 | 28±4 | 28±4 |
Dip pick up | % | 6.0±1.5 | 6.0±1.5 | 5.0±1.0 | 5.0±1.0 |
Moisture content (max) | % | ≤2.0 | ≤2.0 | ||
Free shrinkage | % | ≤6.0 | ≤6.0 | ≤3.0 | ≤4.0 |
For more specifications please feel free to contact us.

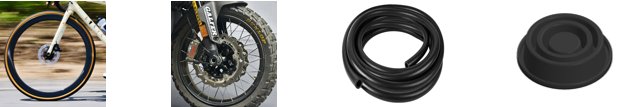

As a carcass ply material for tires, it is widely used in bicycle tires, motorcycle tires, light-truck tires, sownmobile tires, agricultural tires, and construction machinery tires. Additionally, nylon 6 dipped tire cord fabrics can be used in other rubber products such as rubber hoses and air springs.
It is used for the base carcass reinforcement for tires such as bicycle tires, motorcycle tires, as well as for rubber hoses, rubber diaphragms, and other applications.
