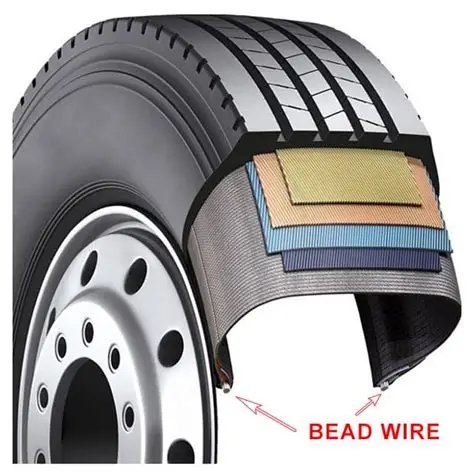

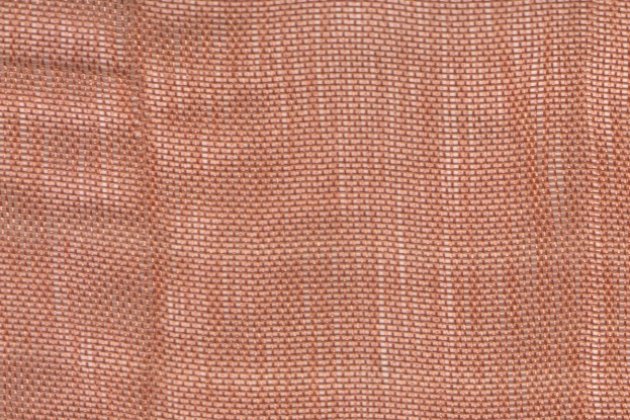

Dipped nylon 66 monofilament chafer fabric, used as an auxiliary material in rubber tire manufacturing, serves primarily as tire bead wrapping cloth. This fabric exhibits excellent properties, including high strength and strong adhesion.
Our dipped nylon 66 monofilament chafer fabric is a high-performance auxiliary material specially designed for rubber tire manufacturing, primarily used as tire bead wrapping cloth. Made of premium nylon 66 monofilament yarn and treated with professional RFL dipping process, this fabric features outstanding tensile strength, stable dimensional stability and strong adhesion to rubber compounds, effectively reinforcing the tire bead structure and extending tire service life. We offer two standard specifications and support full customization to meet diverse tire production requirements.
For more specifications please feel free to contact us.
Customization service are available, let us know your requirements, we will produce for you!
Item | 1400dtex/1×1400dtex/1(1260D/1×1260D/1) | 930dtex/1×930dtex/1(840D/1×840D/1) | |
Warp density(Piece/10cm) | 62 | 62 | |
Weft density(Piece/10cm) | 62 | 62 | |
Width(cm) | 133±2 | 133±2 | |
Length(cm) | 600±6 | 600±6 | |
Twist(twist/10cm) | Warp | 16. 5±2 | 19. 0±3. 5 |
Weft | 19. 5±4 | 22. 0±4. 5 | |
Breaking force | Warp(N/15) | ≥1461. 2 | ≥961. 1 |
Weft(N/19) | ≥1794. 7 | ≥1225. 9 | |
Dip pick-up(%) | 12±3 | 10±3 | |
Thickness(mm) | 0. 70±0. 04 | 0. 57±0. 07 | |
Dry-hot shrinkage(%)(150℃×30 min) | Warp | ≤3. 0 | ≤3. 0 |
Weft | |||
Release force(N/2.54cm) | ≥215. 8 | ≥196. 1 | |
Applications：
This dipped nylon 66 chafer fabric is widely applied in the production of various rubber tires, including passenger car tires, truck and bus tires, OTR tires and industrial tires, serving as the essential bead wrapping reinforcement material in the tire building process.
We provide flexible customization services for chafer fabric specifications, including yarn count, fabric width, roll length, dipping formula and twist level. Simply share your technical drawings or parameter requirements, and our engineering team will tailor the product to match your tire manufacturing standards.
